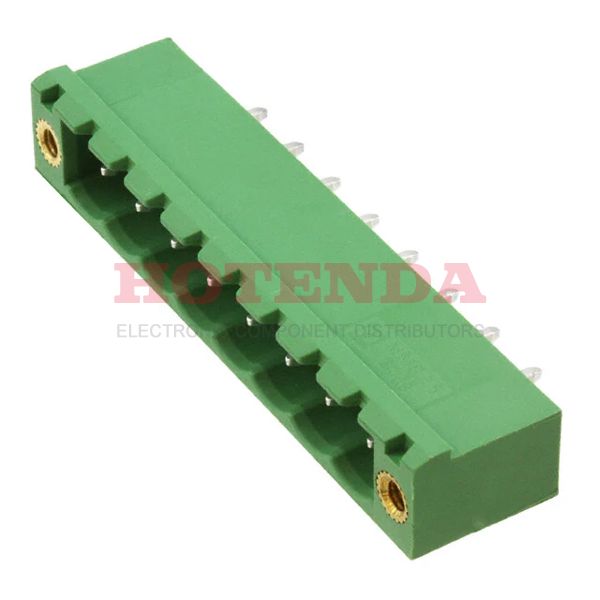

Name: 1777138
Brand: Phoenix Contact
SKU: 1777138
Price: 6.15000 USD
Availability: InStock

new-10%

1777138

Manufacturer part number:1777138

Manufacturer:Phoenix Contact

Description:1777138 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777138 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	154.999997g
Packaging	Bulk
Published	2010
Series	COMBICON MSTBV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: UL; VDE
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.3mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	28 AWG
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	8
Safety Approval	CB; CCA; CSA; CUL; EAC; GL; RS
Header Orientation	Vertical
Number of Positions Per Level	8
Fastening Method	CONNECTOR
Height	15.9mm
Length	50.8mm
Width	50.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777138 Product Details

1777138 Overview

The product comes in a package of Plug.Mounting type Through Hole is selected for the device.Packaging for the product is carried out via a Bulk case.A member of the COMBICON MSTBV Series.There are also other features, like STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: UL; VDE, to name a few.As a result of its Mating and Mounting Flange feature, it possesses a great deal of power.It is mounted by Through Hole.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
