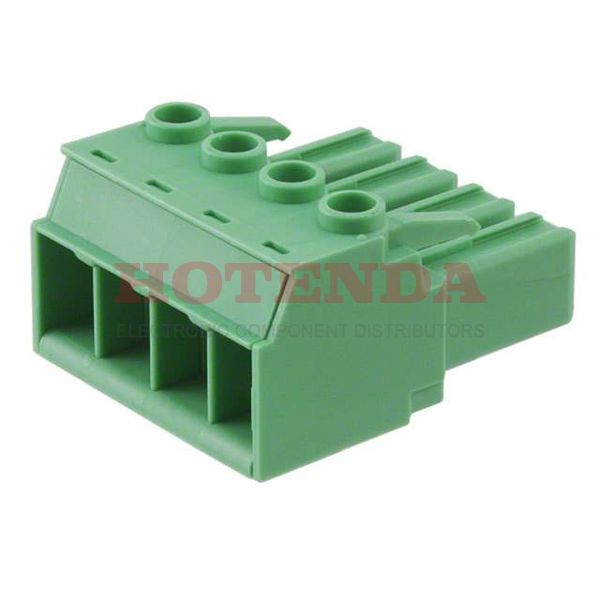

Name: 1777749
Brand: Phoenix Contact
SKU: 1777749
Price: 8.83000 USD
Availability: InStock

new

1777749

Manufacturer part number:1777749

Manufacturer:Phoenix Contact

Description:1777749 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777749 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	1kV
Pitch	0.300 7.62mm
Depth	19.7mm
Insulation Height	0.776 19.70mm
Reach Compliance Code	not_compliant
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	41A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Number of Positions Per Level	4
Screw Size	M3
Height	30.43mm
Length	35.5mm
Width	35.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777749 Product Details

1777749 Overview

This product is packaged in a Screw, Socket carton.This device has a Free Hanging (In-Line) mounting type.Packaging is performed using a Bulk case.This is from the COMBICON PC Series.A number of features make the Retention Latches (Non-Wire Side) feature more powerful.This part is mounted by Free Hanging. Other Plug, Female Sockets products benefit from this part as well.
