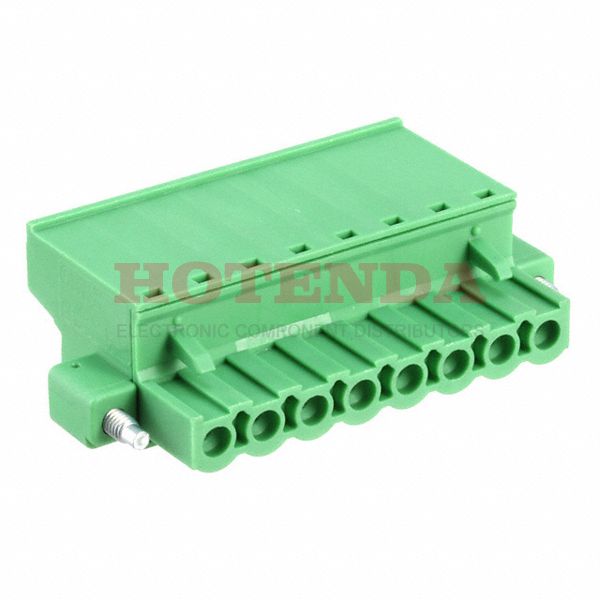

Name: 1777798
Brand: Phoenix Contact
SKU: 1777798
Price: 24.01000 USD
Availability: InStock

new

1777798

Manufacturer part number:1777798

Manufacturer:Phoenix Contact

Description:1777798 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777798 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	135.000004g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MSTB
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	1.083 27.51mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Number of Contacts	8
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Height	27.2mm
Length	15mm
Width	50.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777798 Product Details

1777798 Overview

Screw, Socket packaging is included.Free Hanging (In-Line) is the mounting type for the device.It is necessary to use a Bulk case for packaging the product.It belongs to the COMBICON FRONT-MSTB Series of products.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.A number of advantages can be derived from its Mating Flange, Retention Latches (Non-Wire Side) feature.Mounted by Free Hanging, Panel.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
