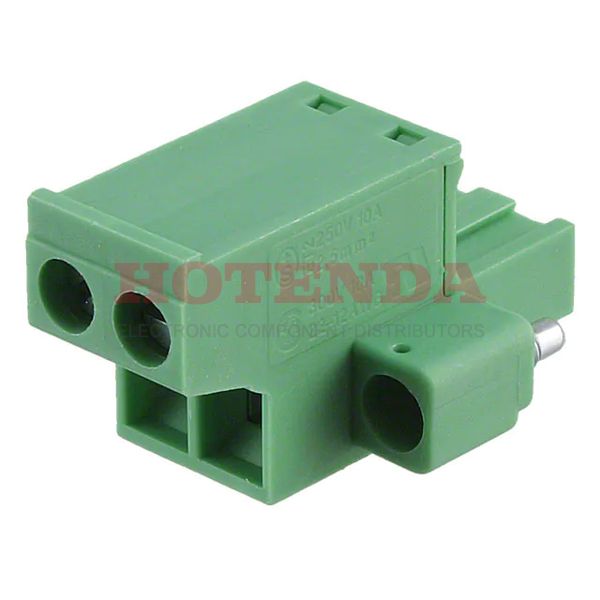

Name: 1777808
Brand: Phoenix Contact
SKU: 1777808
Price: 6.06000 USD
Availability: InStock

new-10%

1777808

Manufacturer part number:1777808

Manufacturer:Phoenix Contact

Description:1777808 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777808 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	135.000004g
Packaging	Bulk
Published	2010
Series	COMBICON FRONT-MSTB
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	27.5mm
Insulation Height	1.083 27.51mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage - Rated AC	250V
Number of Contacts	2
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M2.5
Height	19.96mm
Length	19.96mm
Width	27.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777808 Product Details

1777808 Overview

This product is packaged in a Screw, Socket cartonThis device's mounting type is Free Hanging (In-Line).Packaging the product involves using a Bulk case.As a product of the COMBICON FRONT-MSTB Series, it can be found in this category.Further, there are features such as PA, 94V-0, to name only a few.It is more powerful in many ways due to its Mating Flange, Retention Latches (Non-Wire Side) feature.Mounting of the part is based on Free Hanging, Panel.This chip shouldn't have a supply voltage over 250V.It shares many benefts with other Plug, Female Sockets products.
