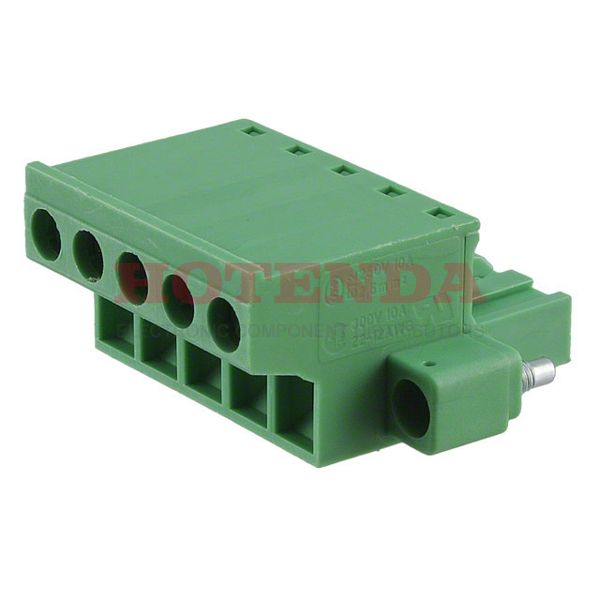

Name: 1777837
Brand: Phoenix Contact
SKU: 1777837
Price: 15.05000 USD
Availability: InStock

new

1777837

Manufacturer part number:1777837

Manufacturer:Phoenix Contact

Description:1777837 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777837 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	135.000004g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MSTB
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0, SAFETY APPROVAL: CSA: GL
Pitch	0.200 5.08mm
Depth	9.09mm
Insulation Height	1.083 27.51mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	5
Screw Size	M2.5
Length	14.36mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777837 Product Details

1777837 Overview

This product is packaged in a Screw cartonA Free Hanging (In-Line) mounting type is specified for the device.We use a Bulk case to package the product.As a product of the COMBICON FRONT-MSTB Series, it can be found in this category.As well as PA, UL 94V-0, SAFETY APPROVAL: CSA: GL, to name a few.Many aspects of its Mating Flange, Retention Latches (Non-Wire Side) feature increase its effectiveness.It is mounted by Free Hanging.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
