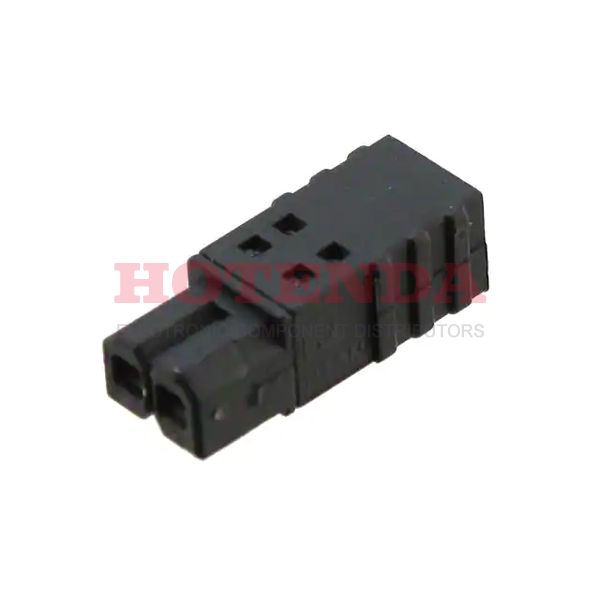

Name: 1778832
Brand: Phoenix Contact
SKU: 1778832
Price: 0.96000 USD
Availability: InStock

new-10%

1778832

Manufacturer part number:1778832

Manufacturer:Phoenix Contact

Description:1778832 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1778832 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PTSM
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	2
Color	Black
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.098 2.50mm
Orientation	Straight
Insulation Height	0.197 5.00mm
Current Rating	6A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	UL
Voltage	150V
Max Current Rating	6A
Number of Levels	1
Current	5A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Number of Poles	2
Wire Gauge or Range - AWG	20-26 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	6mm
Height	5mm
Length	15mm
Width	6.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1778832 Product Details

1778832 Overview

You get it in Socket packaging.The mounting type of the device is Free Hanging (In-Line).We pack the product in a Bulk case.As a product of the COMBICON PTSM Series, it can be found in this category.Cable, Free Hanging represents the mounting point for the part.This part shares lots of benefits with other Plug, Female Sockets products.
