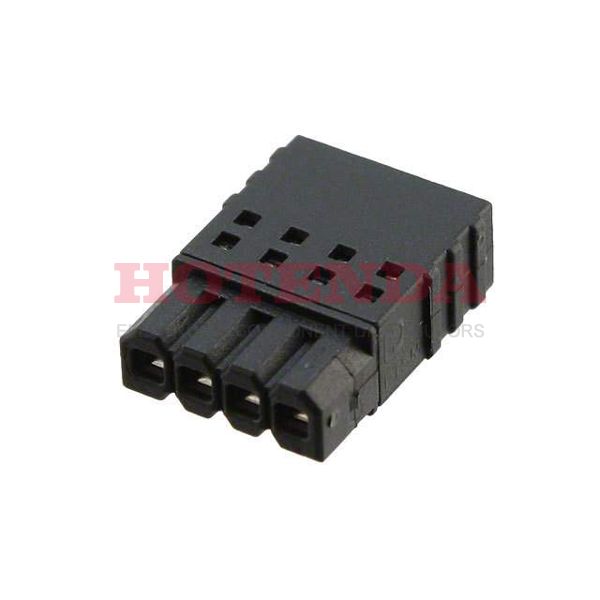

Name: 1778858
Brand: Phoenix Contact
SKU: 1778858
Price: 1.69000 USD
Availability: InStock

new-10%

1778858

Manufacturer part number:1778858

Manufacturer:Phoenix Contact

Description:1778858 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1778858 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PTSM
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	4
Color	Black
Gender	Male
Voltage - Rated	160V
Pitch	0.098 2.50mm
Orientation	Straight
Insulation Height	0.197 5.00mm
Current Rating	6A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	UL
Voltage	150V
Max Current Rating	6A
Number of Levels	1
Current	5A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Number of Poles	4
Wire Gauge or Range - AWG	20-26 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	6mm
Height	5mm
Length	15mm
Width	11.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1778858 Product Details

1778858 Overview

Packaging is Socket.The mounting type of the device is Free Hanging (In-Line).Packaging the product involves using a Bulk case.COMBICON PTSM Series product.Cable, Free Hanging represents the mounting point for the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
