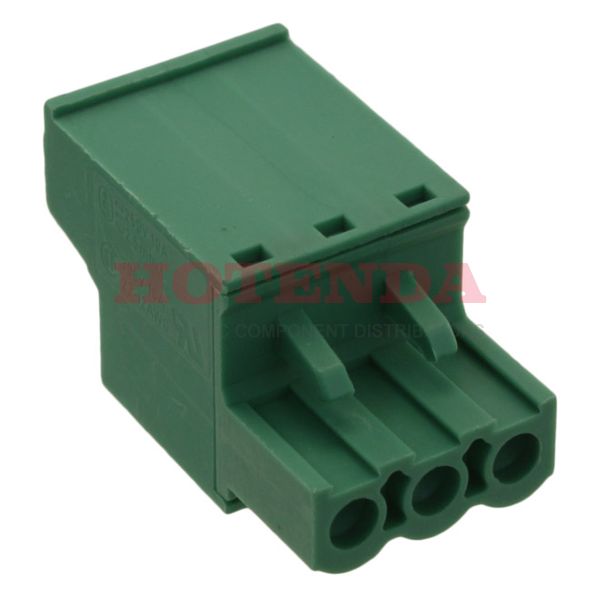

Name: 1779424
Brand: Phoenix Contact
SKU: 1779424
Price: 8.93000 USD
Availability: InStock

new-10%

1779424

Manufacturer part number:1779424

Manufacturer:Phoenix Contact

Description:1779424 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1779424 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	2.100133kg
Packaging	Bulk
Published	2010
Series	COMBICON FRONT-MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Voltage - Rated	250V
Additional Feature	POLYAMIDE, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	3
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Length	15mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1779424 Product Details

1779424 Overview

You'll get Screw packages.The device's mounting type is Free Hanging (In-Line).An orange Bulk case is used to package the product.The product belongs to the COMBICON FRONT-MSTB Series.Furthermore, there are other features such as POLYAMIDE, 94V-0, to name a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Mounted by Free Hanging.This chip should not be supplied with voltages greater than zero.It shares many benefts with other Plug, Female Sockets products.
