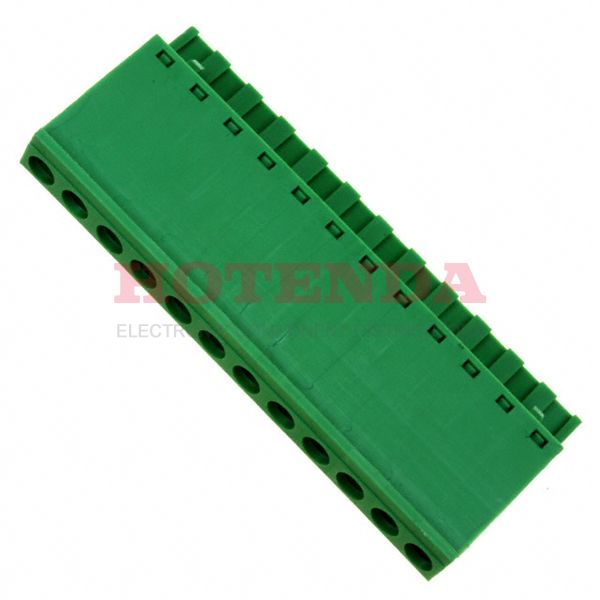

Phoenix Contact

1779518 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1779518 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 5 Weeks
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 699.893027g
PackagingBulk
Published 2010
Series COMBICON FRONT-MSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Pressure Clip
Number of Contacts 12
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Screw Size M2.5
Wire Cross Section 2.5 mm2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:278 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$29.41060$1470.53

1779518 Product Details

1779518 Overview


Currently, it is packaged in Screw.Free Hanging (In-Line) is the mounting type.It's packaged in a Bulk case.This product is in the COMBICON FRONT-MSTB Series.Other features include PA, 94V-0, to name just a few.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.Cable, Free Hanging mounts the part.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.

1779518 Features


COMBICON FRONT-MSTB series

1779518 Applications


There are a lot of Phoenix Contact 1779518 Terminal Blocks applications.

  • Telecommunications
  • Industrial Automation
  • Anywhere power is distributed
  • All Electrical Machinery
  • LED municipal outdoor and street lighting
  • Medical technology
  • Variable speed/frequency drivers
  • Automotive Electronics
  • Energy efficient lighting (LED)
  • Blowers
