Name: 1779741
Brand: Phoenix Contact
SKU: 1779741
Price: 36.48000 USD
Availability: InStock

new

1779741

Manufacturer part number:1779741

Manufacturer:Phoenix Contact

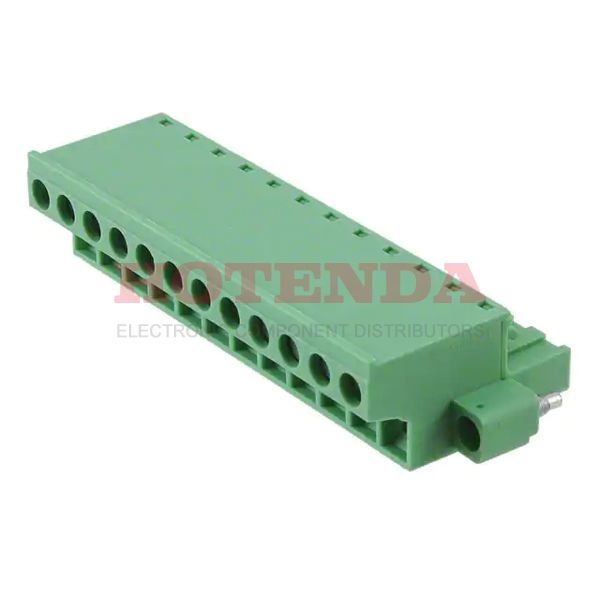

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FRONT-MSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1779741 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	453.59237g
Packaging	Bulk
Series	COMBICON FRONT-MSTB
Published	2011
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Pressure Clip
Number of Contacts	12
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Height	27.2mm
Length	15mm
Width	69.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1779741 Product Details

1779741 Overview

Currently, it is packaged in Screw, Socket.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON FRONT-MSTB Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.A number of features make the Mating Flange, Retention Latches (Non-Wire Side) feature more powerful.Free Hanging, Panel represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
