Name: 1779864
Brand: Phoenix Contact
SKU: 1779864
Price: 8.91000 USD
Availability: InStock

new

1779864

Manufacturer part number:1779864

Manufacturer:Phoenix Contact

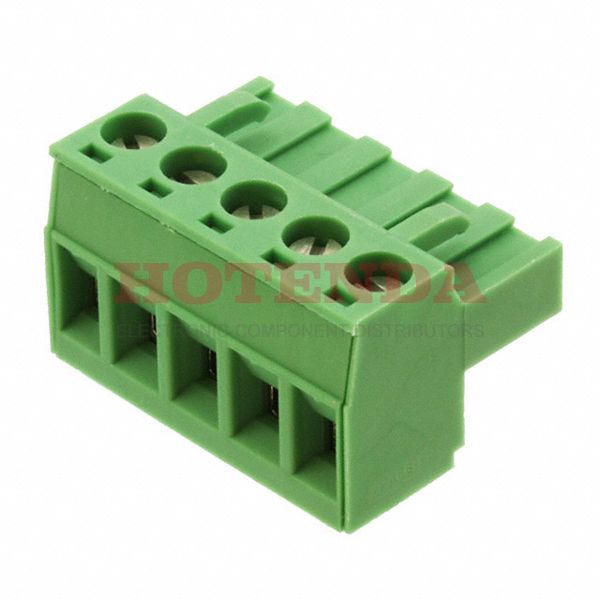

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTBT Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1779864 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.000171kg
Packaging	Bulk
Series	COMBICON MSTBT
Published	2011
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE, cULus
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	5
Screw Size	M3
Height	18.2mm
Length	15mm
Width	25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1779864 Product Details

1779864 Overview

You'll get Screw, Socket packages.A Free Hanging (In-Line) mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the COMBICON MSTBT Series.Additionally, there are other features such as PA, 94V-0.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.By Free Hanging it's mounted.It shares many benefts with other Plug, Female Sockets products.
