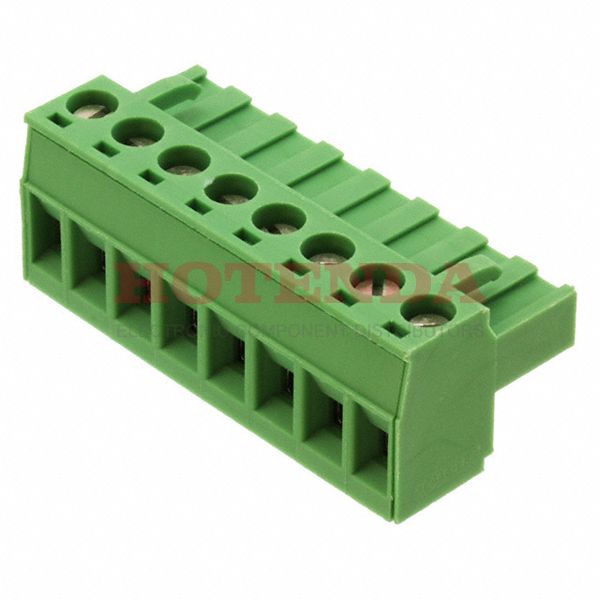

Name: 1779893
Brand: Phoenix Contact
SKU: 1779893
Price: 14.22000 USD
Availability: InStock

new

1779893

Manufacturer part number:1779893

Manufacturer:Phoenix Contact

Description:1779893 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1779893 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	749.788188g
Packaging	Bulk
Published	2010
Series	COMBICON MSTBT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	40mm
Width	40mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1779893 Product Details

1779893 Overview

It comes in Screw, Socket packaging.The mounting type of the device is Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.The product belongs to the COMBICON MSTBT Series.To name a few, there is also PA, 94V-0.Many aspects of its Retention Latches (Non-Wire Side) feature increase its effectiveness.Cable, Free Hanging represents the mounting point for the part.This chip's supply voltage should not exceed 250V.There are a lot of similarities between this part and other Plug, Female Sockets products.
