Name: 1786187
Brand: Phoenix Contact
SKU: 1786187
Price: 5.20000 USD
Availability: InStock

new-10%

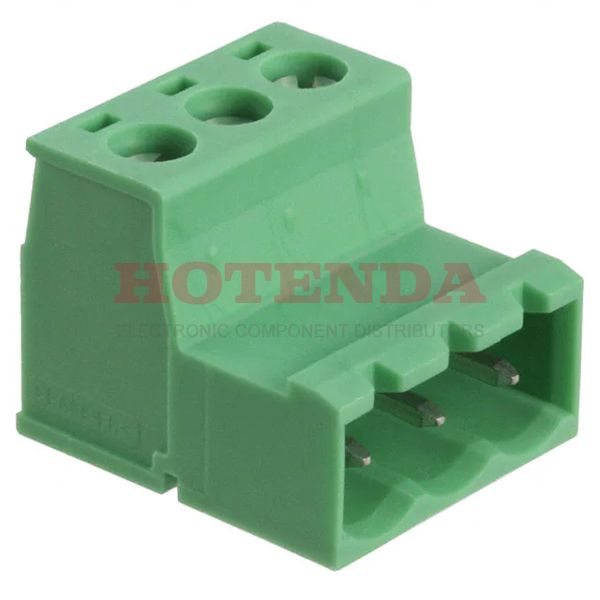

1786187

Manufacturer part number:1786187

Manufacturer:Phoenix Contact

Description:1786187 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786187 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	137.000006g
Packaging	Bulk
Published	2008
Series	COMBICON IC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	15mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Number of Contacts	3
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	16.74mm
Length	16.74mm
Width	19.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1786187 Product Details

1786187 Overview

You get it in Plug, Screw packaging.The mounting type of the device is Free Hanging (In-Line).An Bulk case is utilized for packaging the product.This product is in the COMBICON IC Series.Other features include PA, 94V-0, to name just a few.This part is mounted by Cable, Free Hanging. This chip should not be supplied with voltage greater than 250V volts.With this part, you get a lot of benefits that you won't find in other Plug, Male Pins products.
