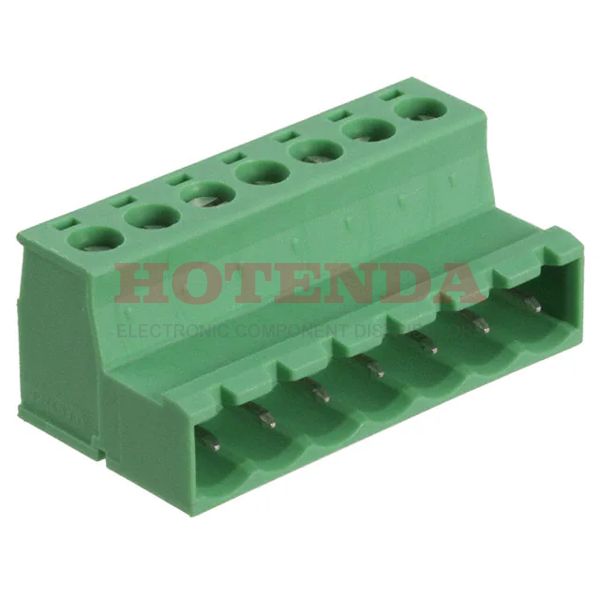

Name: 1786226
Brand: Phoenix Contact
SKU: 1786226
Price: 12.10000 USD
Availability: InStock

new

1786226

Manufacturer part number:1786226

Manufacturer:Phoenix Contact

Description:1786226 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786226 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	137.000006g
Packaging	Bulk
Published	2000
Series	COMBICON IC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	15mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Number of Contacts	7
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	10A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	19.2mm
Length	7mm
Width	37.06mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1786226 Product Details

1786226 Overview

It comes in Plug, Screw packaging.This device has a Free Hanging (In-Line) mounting type.We use a Bulk case to package the product.Specifically, it is one of the products in the COMBICON IC Series.Then there's PA, 94V-0, for example.Cable, Free Hanging represents the mounting point for the part.A voltage greater than 250V should not be applied to this chip.There are many benefits that this part shares with other Plug, Male Pins products as well.
