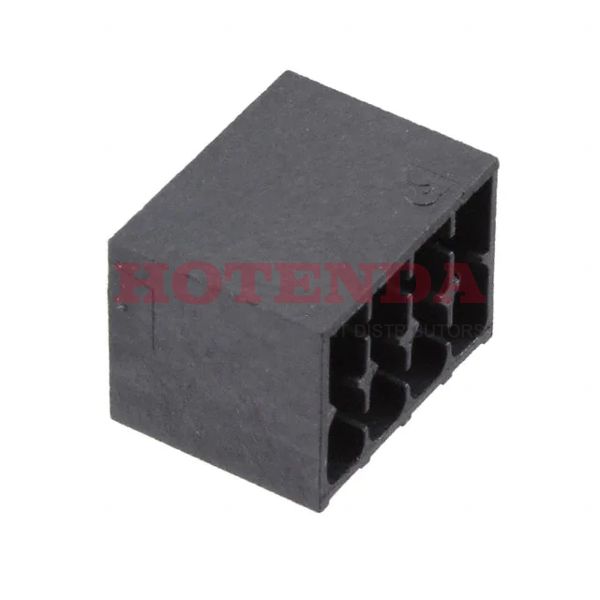

Name: 1786853
Brand: Phoenix Contact
SKU: 1786853
Price: 2.98000 USD
Availability: InStock

new-10%

1786853

Manufacturer part number:1786853

Manufacturer:Phoenix Contact

Description:1786853 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786853 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Published	2011
Series	COMBICON DMC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	11.6mm
Insulation Height	0.425 10.80mm
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.079 2.00mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	8
Safety Approval	CB; CUL; UL; VDE
Header Orientation	90°, Right Angle
Number of Positions Per Level	4
Fastening Method	CONNECTOR
Height	12.8mm
Length	14.8mm
Width	14.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1786853 Product Details

1786853 Overview

Packaging is Plug.This device is mounted in the Through Hole position.Packaging for the product is carried out via a Bulk case.The product is a part of the COMBICON DMC Series.Mounting of the part is based on Through Hole.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
