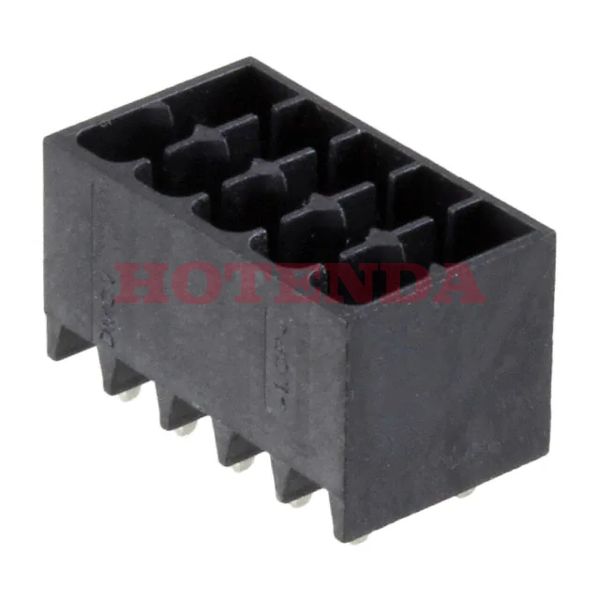

Name: 1787234
Brand: Phoenix Contact
SKU: 1787234
Price: 3.84000 USD
Availability: InStock

new-10%

1787234

Manufacturer part number:1787234

Manufacturer:Phoenix Contact

Description:1787234 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1787234 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Published	2013
Series	COMBICON DMCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	160V
Additional Feature	STANDARD: UL94V-0, LCP
Pitch	0.138 3.50mm
Insulation Height	0.394 10.00mm
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.079 2.00mm
Number of Levels	2
Current	8A
Voltage - UL	150V
Number of Decks	1
Voltage - IEC	250V
Number of Ways	10
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Height	12mm
Length	10.6mm
Width	18.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1787234 Product Details

1787234 Overview

Packaging for this item is Plug.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the COMBICON DMCV Series.Furthermore, there are other features such as STANDARD: UL94V-0, LCP, to name a few.Through Hole represents the mounting point for the part.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (4 Side) series.
