Name: 1788347
Brand: Phoenix Contact
SKU: 1788347
Price: 7.13000 USD
Availability: InStock

new

1788347

Manufacturer part number:1788347

Manufacturer:Phoenix Contact

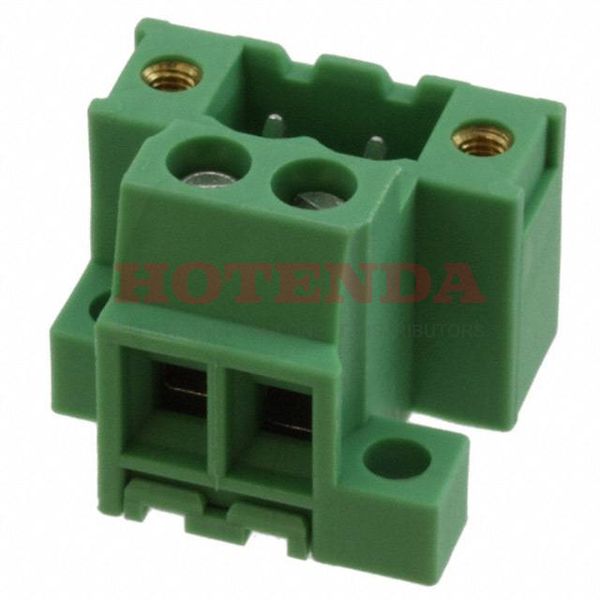

Description:Bulk 0.200 5.08mm Green 1 Levels Board Mount Receptacle, Male Pins COMBICON MVSTBU Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1788347 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mounting Type	Board Mount
Housing Material	Polyamide (PA), Nylon
Weight	206.999996g
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBU
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Receptacle, Male Pins
Number of Positions	2
Color	Green
Voltage - Rated	320V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.681 17.30mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Height	20.4mm
Length	17.3mm
Width	21.48mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1788347 Product Details

1788347 Overview

Packaging is in the form of Plug.This device has a Board Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MVSTBU Series.Several benefits come from the Mating and Mounting Flange feature.There are many benefits that this part shares with other Receptacle, Male Pins products as well.
