Name: 1788525
Brand: Phoenix Contact
SKU: 1788525
Price: 45.46000 USD
Availability: InStock

new

1788525

Manufacturer part number:1788525

Manufacturer:Phoenix Contact

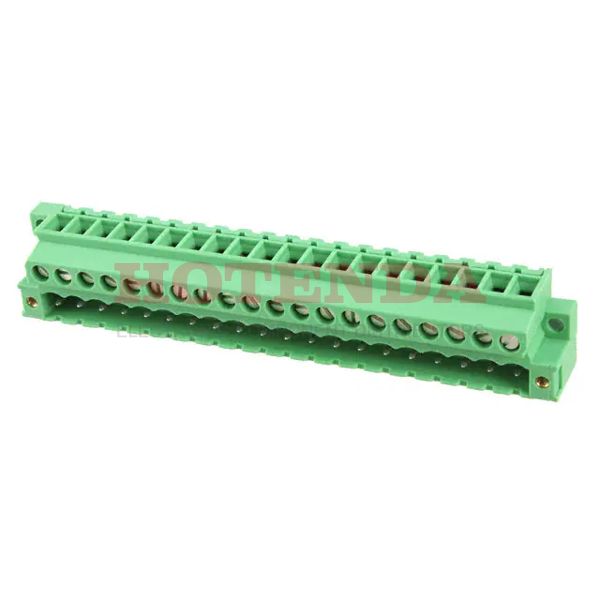

Description:Bulk 0.200 5.08mm Green 1 Levels Board Mount Receptacle, Male Pins COMBICON MVSTBU Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1788525 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mounting Type	Board Mount
Housing Material	Polyamide (PA), Nylon
Weight	206.999996g
Packaging	Bulk
Series	COMBICON MVSTBU
Published	2010
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Receptacle, Male Pins
Number of Positions	20
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-2
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.681 17.30mm
Current Rating	12A
Termination Style	Screw
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	20
Safety Approval	UL
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	20.4mm
Length	17.3mm
Width	112.92mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1788525 Product Details

1788525 Overview

The product comes in a package of Plug.Board Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON MVSTBU Series.Among other features are PA, 94V-2, to name only a few.It is more powerful in many ways due to its Mating and Mounting Flange feature.This chip should not be operated above 320V volts.Compared to other Receptacle, Male Pins products, this part has a lot of benefits to offer.
