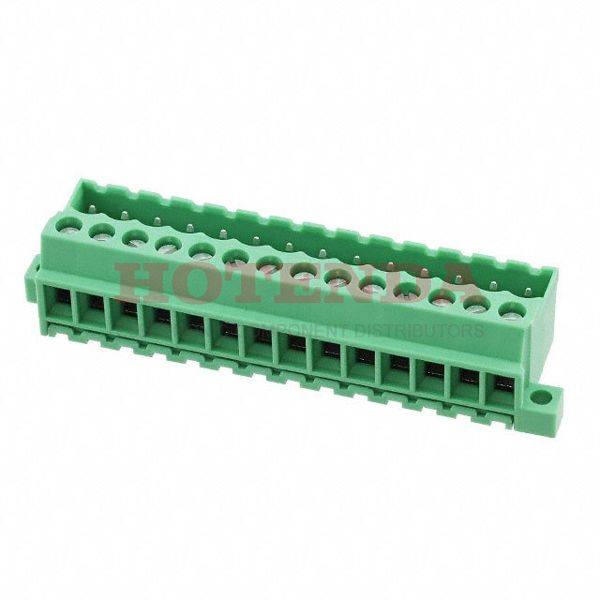

Name: 1788651
Brand: Phoenix Contact
SKU: 1788651
Price: 28.51000 USD
Availability: InStock

new

1788651

Manufacturer part number:1788651

Manufacturer:Phoenix Contact

Description:1788651 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1788651 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Panel
Mounting Type	Board Mount
Housing Material	Polyamide (PA), Nylon
Weight	206.999996g
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBU
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Receptacle, Male Pins
Number of Positions	14
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-2
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.681 17.30mm
Current Rating	12A
Termination Style	Screw
Number of Contacts	14
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	14
Safety Approval	UL
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	20.4mm
Length	17.3mm
Width	82.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1788651 Product Details

1788651 Overview

The product comes in a package of Plug.The mounting type of the device is Board Mount.This product is packaged in a case marked Bulk.The product belongs to the COMBICON MVSTBU Series.Among other features are PA, 94V-2, to name only a few.In many ways, its Mounting Flange feature makes it more powerful.Part Panel is mounted to the part.There are a lot of advantages this part has in common with other Receptacle, Male Pins parts.
