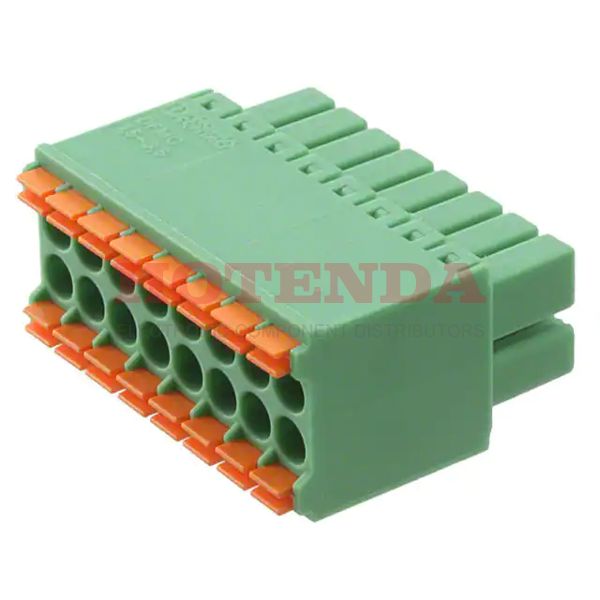

Name: 1790166
Brand: Phoenix Contact
SKU: 1790166
Price: 14.02000 USD
Availability: InStock

new

1790166

Manufacturer part number:1790166

Manufacturer:Phoenix Contact

Description:1790166 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1790166 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON DFMC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	22.65mm
Insulation Height	0.522 13.25mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Contact Gender	Female
Voltage	150V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	2
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Number of Poles	8
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	250V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Test Voltage	2.5kV
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1790166 Product Details

1790166 Overview

Packaging is Screw.Mounting type Free Hanging (In-Line) is selected for the device.An orange Bulk case is used to package the product.COMBICON DFMC Series product.It's mounted by Free Hanging.You should not supply this chip with more voltage than 160V.Many Plug, Female Sockets products share the same benefits as this part.
