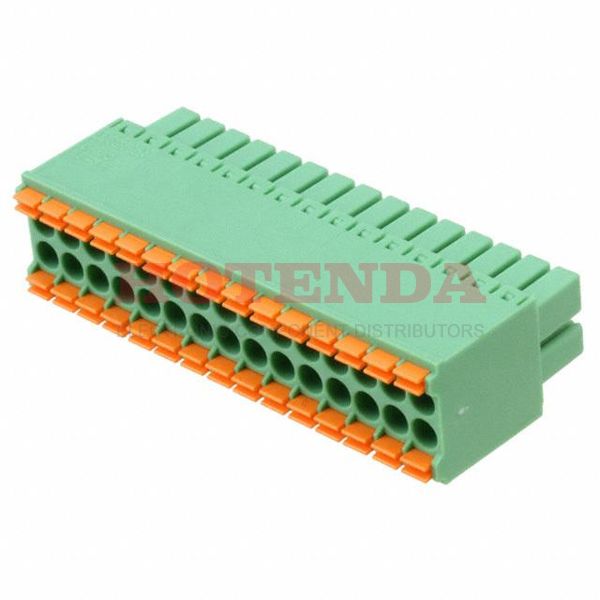

1790234

1790234

1790234

Phoenix Contact

1790234 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1790234 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2013
Series COMBICON DFMC
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 30
Color Green
Voltage - Rated 160V
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screwless - Push-In Spring
Contact Gender Female
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 15
Test Voltage 2.5kV
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:279 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$23.692470$23.69247
10$22.351387$223.51387
100$21.086214$2108.6214
500$19.892655$9946.3275
1000$18.766656$18766.656

1790234 Product Details

1790234 Overview


The product comes in a package of Screw.Mounting type Free Hanging (In-Line) is selected for the device.It has been determined that a Bulk case is necessary to package the product.It is part of the COMBICON DFMC Series of products.Free Hanging mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.

1790234 Features


COMBICON DFMC series

1790234 Applications


There are a lot of Phoenix Contact 1790234 Terminal Blocks applications.

  • Medical technology
  • Variable speed/frequency drivers
  • Control panels
  • Blowers
  • Data Technology
  • All Electrical Machinery
  • Anywhere power is distributed
  • Instrumentation
  • Refrigeration control
  • Measuring & Control Technology
