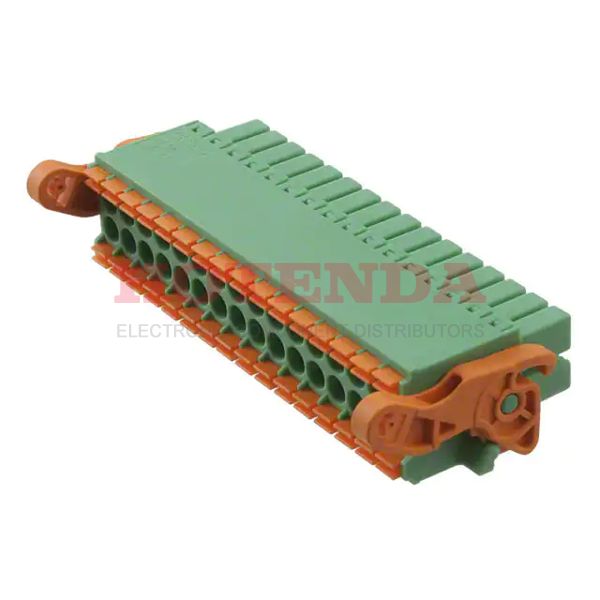

Phoenix Contact

1790629 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1790629 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2013
Series COMBICON DFMC
Feature Ejector Latches
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 32
Color Green
Gender Female
Voltage - Rated 160V
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 16
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:274 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$15.822678$15.822678
10$14.927055$149.27055
100$14.082127$1408.2127
500$13.285026$6642.513
1000$12.533043$12533.043

1790629 Product Details

1790629 Overview


The product is packaged in Screw.This device has a mounting type of Free Hanging (In-Line).An Bulk case is utilized for packaging the product.The product is a part of the COMBICON DFMC Series.A number of features make the Ejector Latches feature more powerful.Free Hanging is used to mount the part.There are many benefits shared between this part and other Plug, Female Sockets products.

1790629 Features


COMBICON DFMC series

1790629 Applications


There are a lot of Phoenix Contact 1790629 Terminal Blocks applications.

  • Refrigeration control
  • Energy efficient lighting (LED)
  • Measuring & Control Technology
  • Electrical substations
  • Automotive Electronics
  • Communication
  • Data Technology
  • Medical technology
  • Blowers
  • All Electrical Machinery
