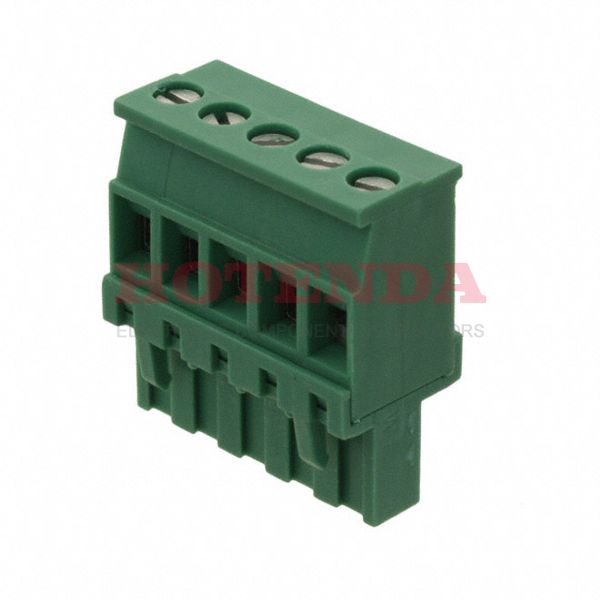

Name: 1792278
Brand: Phoenix Contact
SKU: 1792278
Price: 6.14000 USD
Availability: InStock

new-10%

1792278

Manufacturer part number:1792278

Manufacturer:Phoenix Contact

Description:1792278 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792278 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	132.000001g
Packaging	Bulk
Published	2001
Series	COMBICON MVSTBR
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	5.08mm
Number of Contacts	5
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Wire/Cable Gauge	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	EN; UL; VDE
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	26mm
Length	25.4mm
Width	26.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792278 Product Details

1792278 Overview

You'll get Screw, Socket packages.There is a mounting type of Free Hanging (In-Line) for this device.A Bulk case is used for packaging.A member of the COMBICON MVSTBR Series.Further, there are features such as PA, 94V-0, to name only a few.This feature renders it more powerful in a number of ways because of its Retention Latches (Wire Side) feature.By Cable, Free Hanging, the part is mounted.A supply voltage of 250V should not be exceeded by this chip.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
