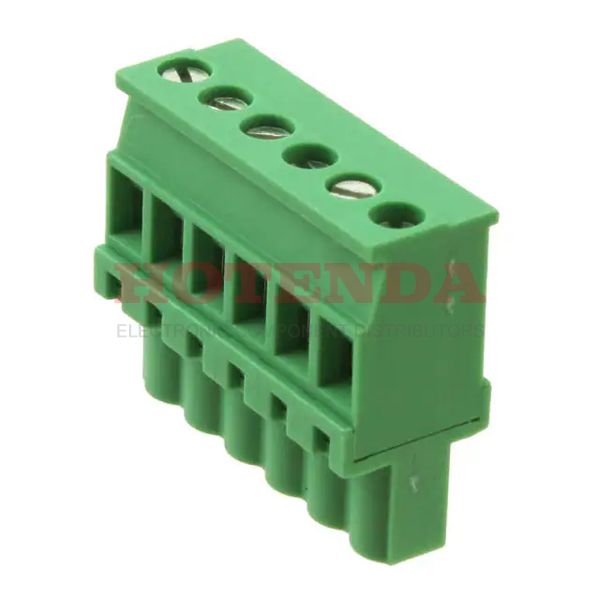

Name: 1792799
Brand: Phoenix Contact
SKU: 1792799
Price: 7.34000 USD
Availability: InStock

new-10%

1792799

Manufacturer part number:1792799

Manufacturer:Phoenix Contact

Description:1792799 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792799 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	133.000002g
Packaging	Bulk
Published	2001
Series	COMBICON MVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	POLYAMIDE, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	320V
Approval Agency	CB, CSA, UL, VDE
Lead Pitch	5.08mm
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL; CSA
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	6
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	26mm
Length	7mm
Width	30.48mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792799 Product Details

1792799 Overview

It comes in a Socket package.Free Hanging (In-Line) indicates that the device is mounted.It has been determined that a Bulk case is necessary to package the product.It belongs to the COMBICON MVSTBW Series of products.Besides that, there's also POLYAMIDE, 94V-0, to name a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.Part Cable, Free Hanging is mounted to the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
