Name: 1792889
Brand: Phoenix Contact
SKU: 1792889
Price: 0.84000 USD
Availability: InStock

new-10%

1792889

Manufacturer part number:1792889

Manufacturer:Phoenix Contact

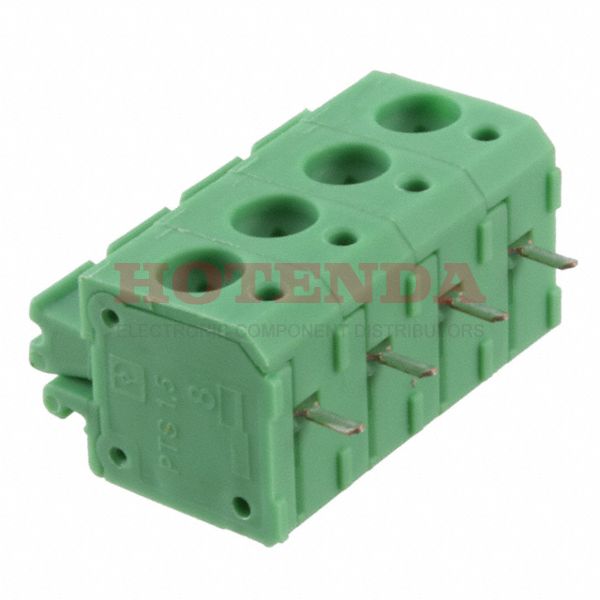

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 14-26 AWG COMBICON PTS

Case Package:SOT-23

Datasheet:1792889 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	PCB, Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON PTS
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	4
Color	Green
Gender	Male
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	10.5mm
Current Rating	12A
Approval Agency	CB, VDE, cULus
Wire Gauge	14-26 AWG
Max Supply Voltage	400V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	26 AWG
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Push Button Clamp
Stripping Length	8mm
Height	13.6mm
Length	20mm
Width	10.5mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1792889 Product Details

1792889 Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON PTS Series.By PCB, Through Hole, the part is mounted.A supply voltage of 400V should not be exceeded by this chip.
