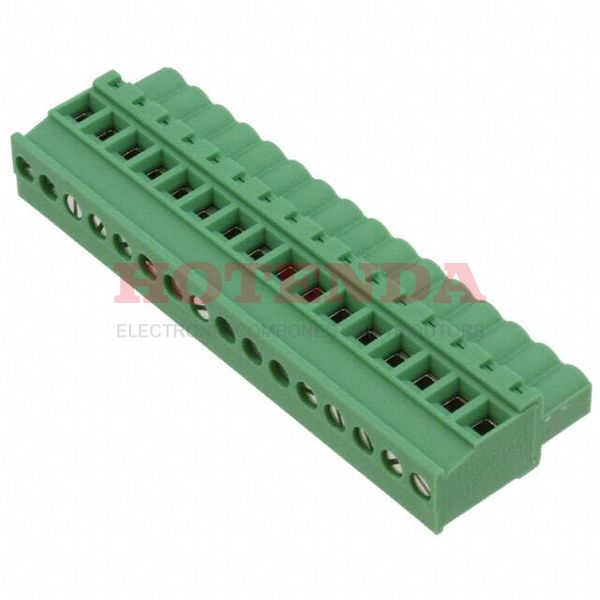

Name: 1792896
Brand: Phoenix Contact
SKU: 1792896
Price: 19.60000 USD
Availability: InStock

new

1792896

Manufacturer part number:1792896

Manufacturer:Phoenix Contact

Description:1792896 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792896 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	133.000002g
Packaging	Bulk
Published	2011
Series	COMBICON MVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	16
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	81.28mm
Width	81.28mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792896 Product Details

1792896 Overview

The packaging is Socket.The mounting type of the device is Free Hanging (In-Line).The product is packaged in a Bulk case.The product is a member of the COMBICON MVSTBW Series.Then there's PA, 94V-0, for example.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.You've got Cable, Free Hanging mounted on the part.Ensure that the supply voltage of this chip does not exceed 250V.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
