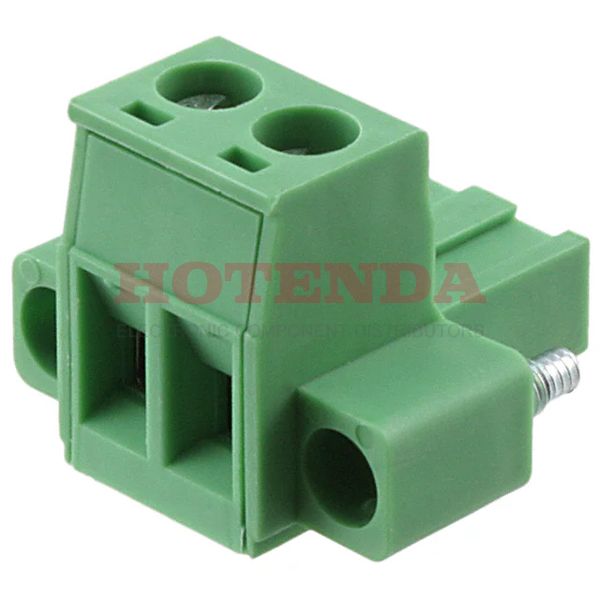

Name: 1795556
Brand: Phoenix Contact
SKU: 1795556
Price: 3.84000 USD
Availability: InStock

new-10%

1795556

Manufacturer part number:1795556

Manufacturer:Phoenix Contact

Description:1795556 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1795556 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON MSTB
Feature	Explosion Proof, Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	250V
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-24 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1795556 Product Details

1795556 Overview

This product is packaged in a Screw carton.Free Hanging (In-Line) is the mounting type of the device.To package the product, a Bulk case is used.As a product of the COMBICON MSTB Series, it can be found in this category.A number of advantages are provided by its Explosion Proof, Mating Flange feature.Part Free Hanging is mounted to the part.As with other Plug, Female Sockets products, this part has a lot of benefits.
