Name: 1795572
Brand: Phoenix Contact
SKU: 1795572
Price: 6.07000 USD
Availability: InStock

new-10%

1795572

Manufacturer part number:1795572

Manufacturer:Phoenix Contact

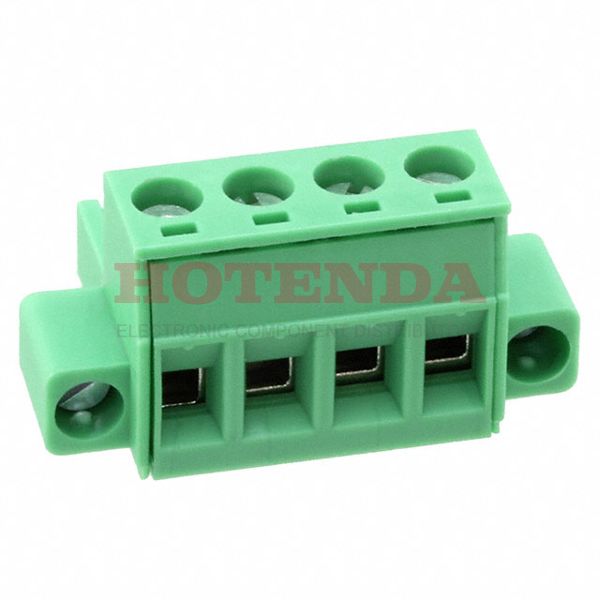

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1795572 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON MSTB
Published	2012
Feature	Explosion Proof, Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-24 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	4
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1795572 Product Details

1795572 Overview

A Screw package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON MSTB Series of products.A number of features make it more powerful because of its Explosion Proof, Mating Flange feature.Cable, Free Hanging mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
