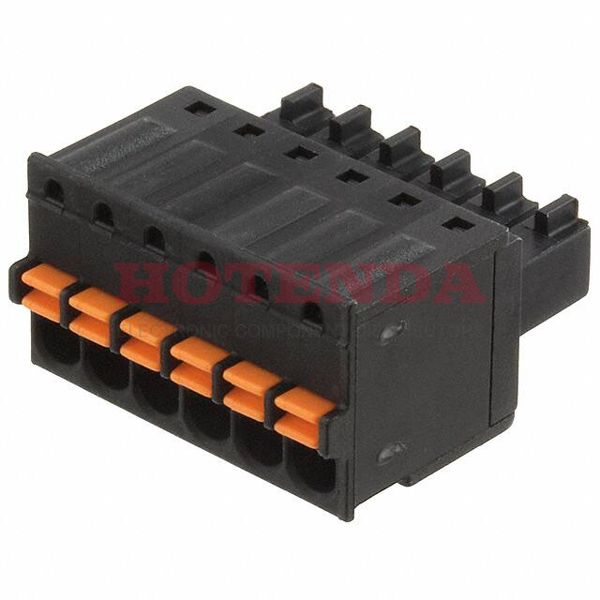

Name: 1800276
Brand: Phoenix Contact
SKU: 1800276
Price: 11.55000 USD
Availability: InStock

new

1800276

Manufacturer part number:1800276

Manufacturer:Phoenix Contact

Description:1800276 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1800276 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Published	2013
Series	COMBICON FK-MCP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Voltage - Rated	160V
Pitch	0.138 3.50mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Number of Positions Per Level	6
Length	17.5mm
RoHS Status	RoHS Compliant

1800276 Product Details

1800276 Overview

Its mounting type is Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.This product is in the COMBICON FK-MCP Series.By Free Hanging, Plug-In, the part is mounted.There are a lot of similarities between this part and other Plug, Female Sockets products.
