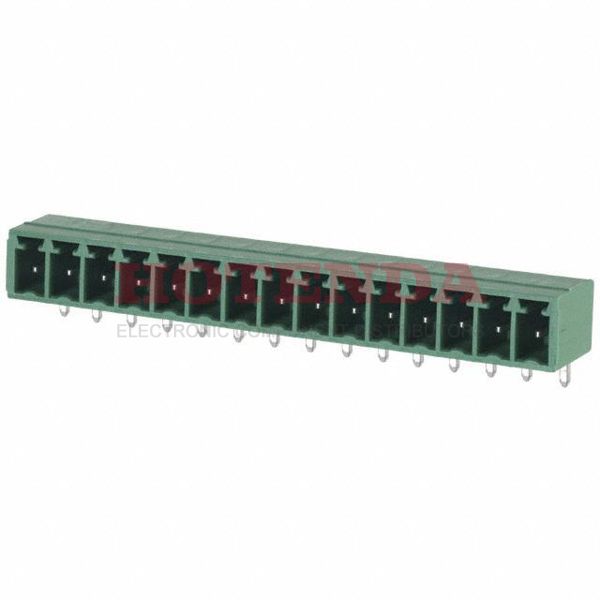

Name: 1803400
Brand: Phoenix Contact
SKU: 1803400
Price: 6.44000 USD
Availability: InStock

new-10%

1803400

Manufacturer part number:1803400

Manufacturer:Phoenix Contact

Description:1803400 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803400 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	15
Number of Decks	1
Voltage - IEC	250V
Number of Ways	15
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Height	10.65mm
Length	58.54mm
Width	58.54mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803400 Product Details

1803400 Overview

The packaging is Plug.The device's mounting type is Through Hole.Packaging the product involves using a Bulk case.There is a product in the COMBICON MC Series.Mounted by Through Hole.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
