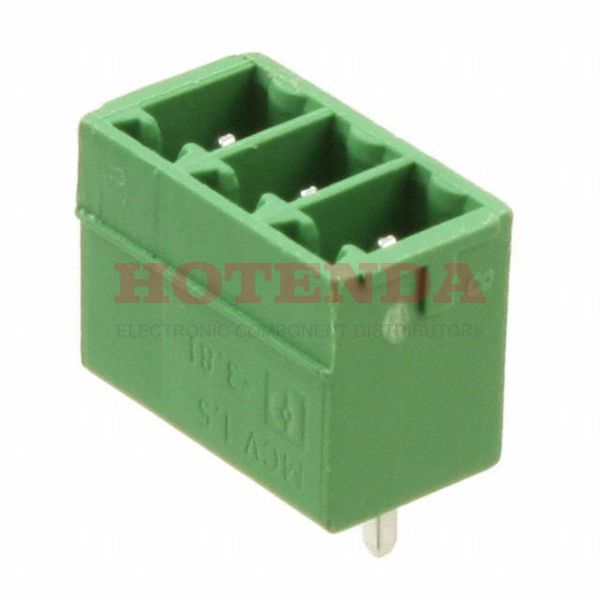

Name: 1803439
Brand: Phoenix Contact
SKU: 1803439
Price: 1.40000 USD
Availability: InStock

new-10%

1803439

Manufacturer part number:1803439

Manufacturer:Phoenix Contact

Description:1803439 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803439 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Additional Feature	STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	3.81mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	3
Number of Decks	1
Voltage - IEC	250V
Number of Ways	3
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	12.6mm
Length	12.82mm
Width	12.82mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803439 Product Details

1803439 Overview

A Plug package is included with it.Through Hole is the mounting type.Packaging is performed using a Bulk case.COMBICON MCV Series product.There are also features like STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE, just to name a few.Through Hole is used to mount the part.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
