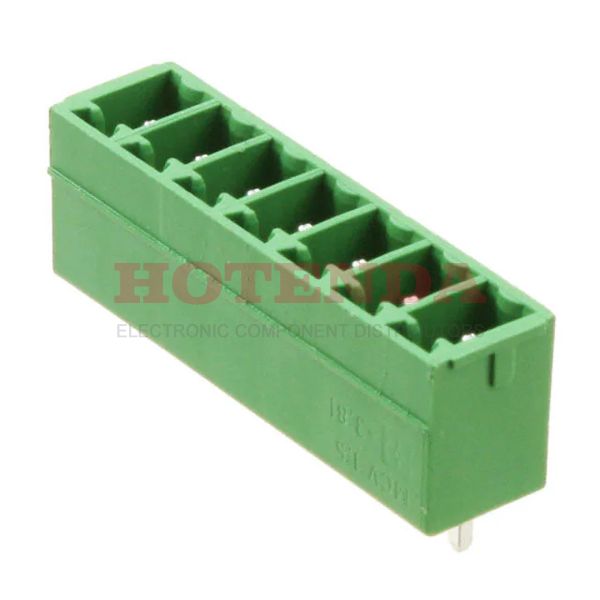

Name: 1803471
Brand: Phoenix Contact
SKU: 1803471
Price: 3.16000 USD
Availability: InStock

new-10%

1803471

Manufacturer part number:1803471

Manufacturer:Phoenix Contact

Description:1803471 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803471 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2005
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	7
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	250V
Number of Ways	7
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Length	28.06mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803471 Product Details

1803471 Overview

This device is mounted in the Through Hole position.In order to package the product, a Bulk case is used.It's from the COMBICON MCV Series.There is a mounting hole at Through Hole.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
