Name: 1803659
Brand: Phoenix Contact
SKU: 1803659
Price: 12.17000 USD
Availability: InStock

new

1803659

Manufacturer part number:1803659

Manufacturer:Phoenix Contact

Description:1803659 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803659 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	97.999992g
Packaging	Bulk
Published	2001
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	10
Contact Gender	Female
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Wire/Cable Gauge	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Test Voltage	2.5kV
Height	11.1mm
Length	7mm
Width	38.89mm
Thickness	34.29mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

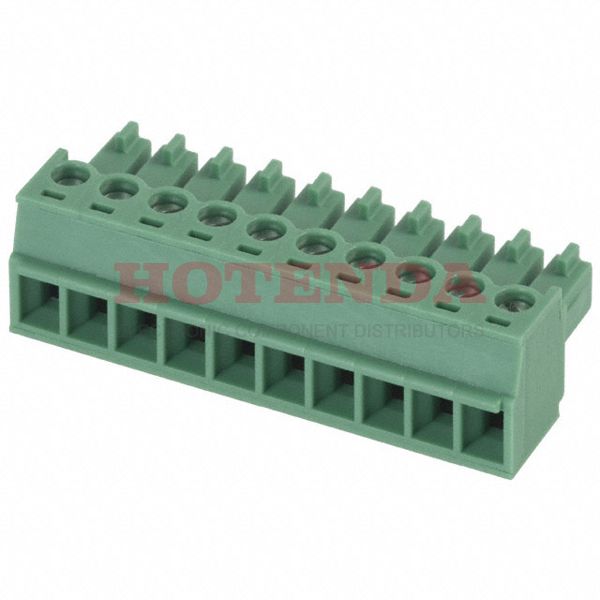

1803659 Product Details

1803659 Overview

The packaging is Screw, Socket.Mounting type Free Hanging (In-Line) is selected for the device.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON MC Series, it can be found in this category.There are also other features, like PA, 94V-0, to name a few.Cable, Free Hanging is mounting the part.The supply voltage of this chip should not exceed 160V.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
