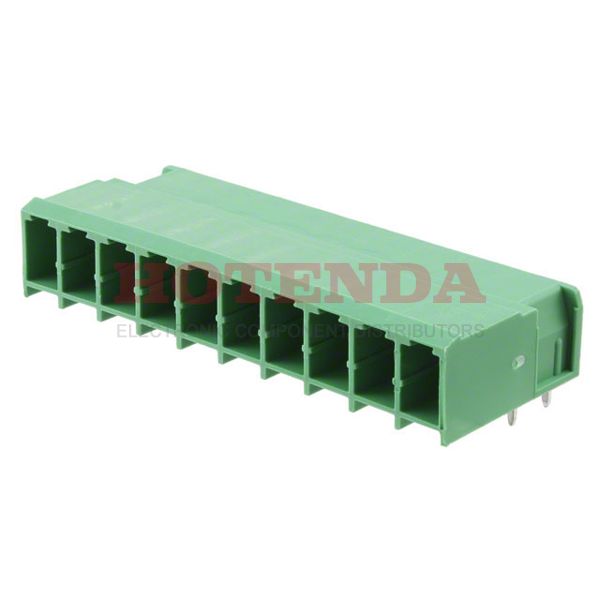

Name: 1804878
Brand: Phoenix Contact
SKU: 1804878
Price: 17.26000 USD
Availability: InStock

new

1804878

Manufacturer part number:1804878

Manufacturer:Phoenix Contact

Description:1804878 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804878 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2010
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	29mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.197 5.00mm
Max Current Rating	20A
Number of Levels	1
Current	20A
Number of Decks	1
Voltage - IEC	630V
Number of Ways	10
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	10
Height	29mm
Length	76.18mm
Width	76.18mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1804878 Product Details

1804878 Overview

Plug packaging is included.Through Hole is the type of mounting for the device.This product is packaged in a case marked Bulk.The product is part of the COMBICON PC Series.Further, there are features such as PA, 94V-0, to name only a few.Mounting of the part is based on Through Hole.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
