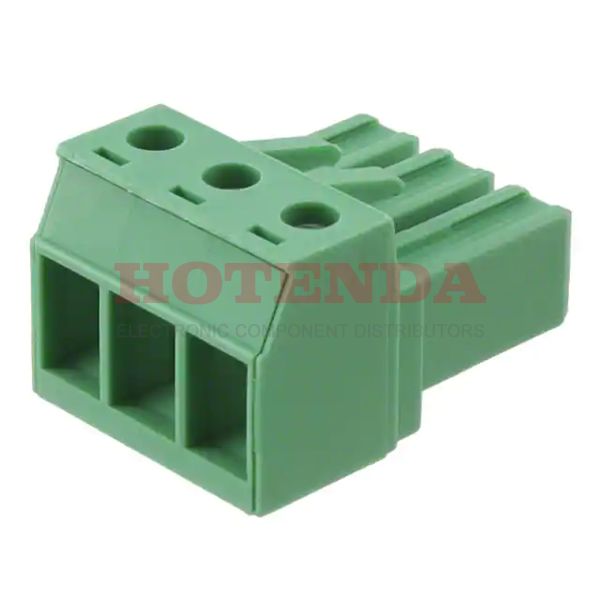

Name: 1804917
Brand: Phoenix Contact
SKU: 1804917
Price: 8.54000 USD
Availability: InStock

new-10%

1804917

Manufacturer part number:1804917

Manufacturer:Phoenix Contact

Description:1804917 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804917 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Published	2001
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL
Number of Contacts	3
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	10 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	BV; CSA; CUL; EAC; EN; RS; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	4 mm2
Height	22.84mm
Length	22.84mm
Width	30.7mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804917 Product Details

1804917 Overview

The product comes in a package of Screw, Socket.Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used for packaging.The product is a member of the COMBICON PC Series.There are also features like PA, 94V-0, just to name a few.A number of features make it more powerful because of its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging mounts the part.Ensure that the supply voltage of this chip does not exceed 400V.It shares many benefts with other Plug, Female Sockets products.
