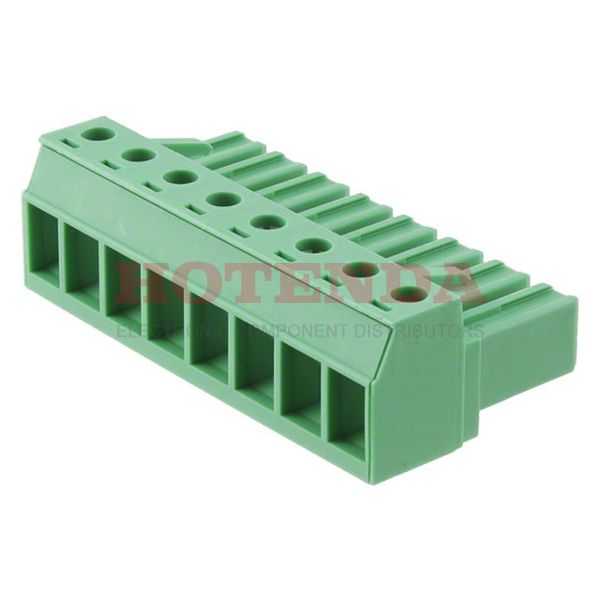

Name: 1804962
Brand: Phoenix Contact
SKU: 1804962
Price: 22.80000 USD
Availability: InStock

new

1804962

Manufacturer part number:1804962

Manufacturer:Phoenix Contact

Description:1804962 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804962 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2010
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	5A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Wire/Cable Gauge	10 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	BV; CSA; CUL; EAC; RS; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	4 mm2
Height	30.7mm
Length	60.94mm
Width	60.94mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804962 Product Details

1804962 Overview

Packaging for this item is Screw, Socket.There is a Free Hanging (In-Line) mounting type for the device.Packaging the product involves using a Bulk case.The product is a part of the COMBICON PC Series.Additionally, there are other features such as STANDARD: UL 94V-0, PA.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.The part is mounted by Cable, Free Hanging.Ensure that this chip's supply voltage does not exceed 400V volts.There are a lot of similarities between this part and other Plug, Female Sockets products.
