Name: 1805000
Brand: Phoenix Contact
SKU: 1805000
Price: 34.19000 USD
Availability: InStock

new

1805000

Manufacturer part number:1805000

Manufacturer:Phoenix Contact

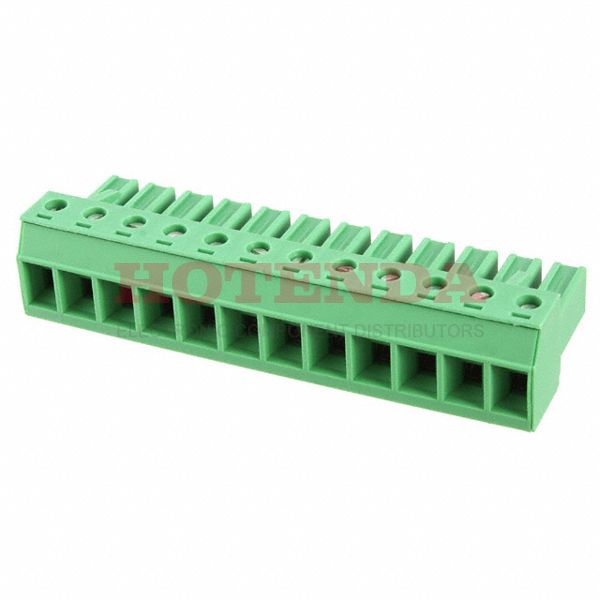

Description:Bulk 0.300 7.62mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON PC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1805000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	350.000009g
Packaging	Bulk
Series	COMBICON PC
Published	2012
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Reach Compliance Code	unknown
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	10 AWG
Wire/Cable Gauge	10 AWG
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Current - UL	5A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	4 mm2
Height	30.7mm
Length	91.42mm
Width	91.42mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1805000 Product Details

1805000 Overview

The packaging contains Screw, Socket.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON PC belongs to the COMBICON PC Series.Further, there are features such as PA, 94V-0, to name only a few.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.There is a Cable, Free Hanging mount on the part.This chip's supply voltage should not exceed 400V.There are a lot of similarities between this part and other Plug, Female Sockets products.
