Name: 1805136
Brand: Phoenix Contact
SKU: 1805136
Price: 11.72000 USD
Availability: InStock

new

1805136

Manufacturer part number:1805136

Manufacturer:Phoenix Contact

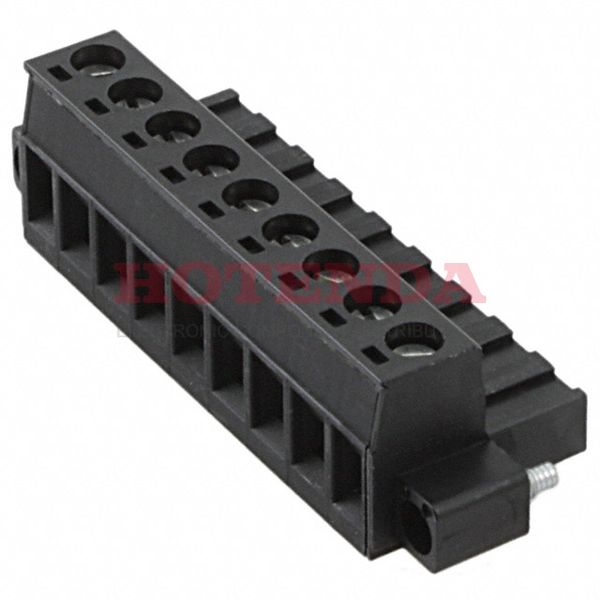

Description:Bulk 0.200 5.08mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Tin

Case Package:SOT-23

Datasheet:1805136 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Series	COMBICON MSTB
Published	2010
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	9
Color	Black
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
RoHS Status	RoHS Compliant

1805136 Product Details

1805136 Overview

Packaging is in the form of Screw.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MSTB Series.Several benefits come from the Mating Flange feature.There is a mounting hole at Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.
