Name: 1805987
Brand: Phoenix Contact
SKU: 1805987
Price: 9.98000 USD
Availability: InStock

new

1805987

Manufacturer part number:1805987

Manufacturer:Phoenix Contact

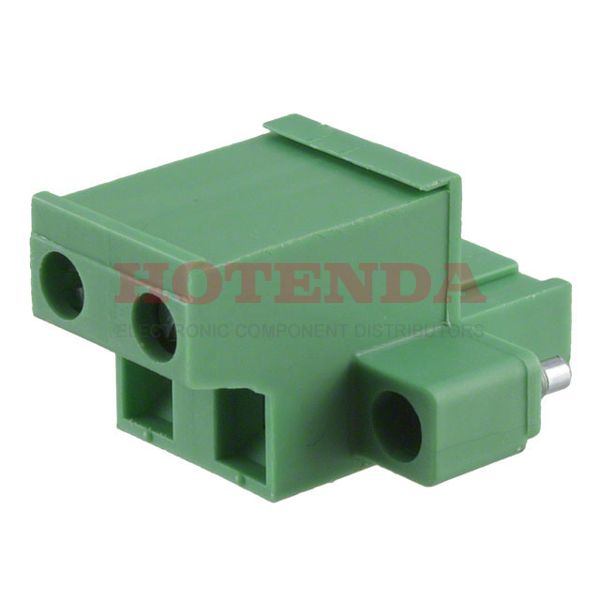

Description:Bulk 0.300 7.62mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FRONT-GMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1805987 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	7.260001g
Packaging	Bulk
Series	COMBICON FRONT-GMSTB
Published	2013
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage	300V
Max Supply Voltage	630V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M3
Height	25.86mm
Length	25.86mm
Width	27.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1805987 Product Details

1805987 Overview

It comes in Screw, Socket packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON FRONT-GMSTB Series of products.Its Mating Flange, Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.The part is mounted by Free Hanging.The supply voltage of this chip should not exceed 630V.This part shares lots of benefits with other Plug, Female Sockets products.
