Name: 1808608
Brand: Phoenix Contact
SKU: 1808608
Price: 7.08000 USD
Availability: InStock

new-10%

1808608

Manufacturer part number:1808608

Manufacturer:Phoenix Contact

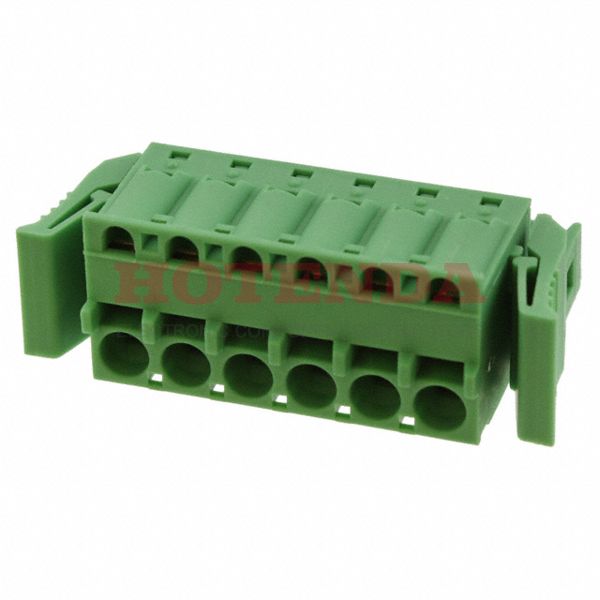

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FKCS Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1808608 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON FKCS
Published	2013
Feature	Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	6
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1808608 Product Details

1808608 Overview

The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON FKCS Series, it belongs to the range of products of that series.A number of features make the Latch Lock, Retention Latches (Non-Wire Side) feature more powerful.Free Hanging represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
