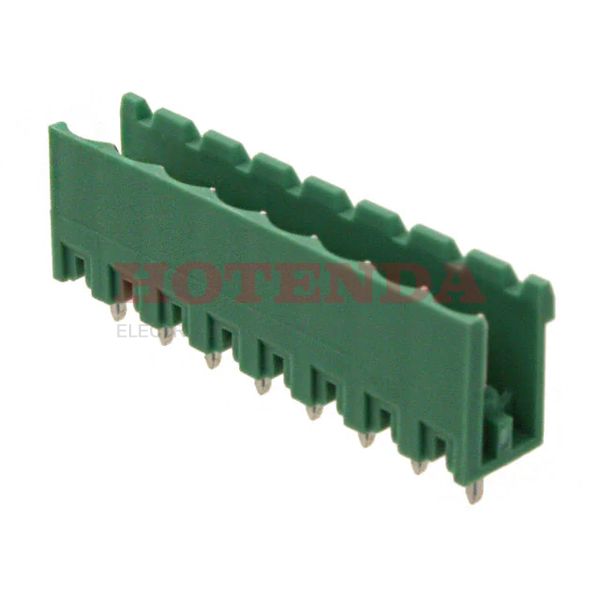

Name: 1809322
Brand: Phoenix Contact
SKU: 1809322
Price: 3.25000 USD
Availability: InStock

new-10%

1809322

Manufacturer part number:1809322

Manufacturer:Phoenix Contact

Description:1809322 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1809322 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Packaging	Bulk
Published	2012
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Approval Agency	cULus
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	8
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1809322 Product Details

1809322 Overview

Through Hole indicates that the device is mounted.Packaging the product involves using a Bulk case.The product belongs to the COMBICON MSTBVA Series.This part is mounted by Through Hole. Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
