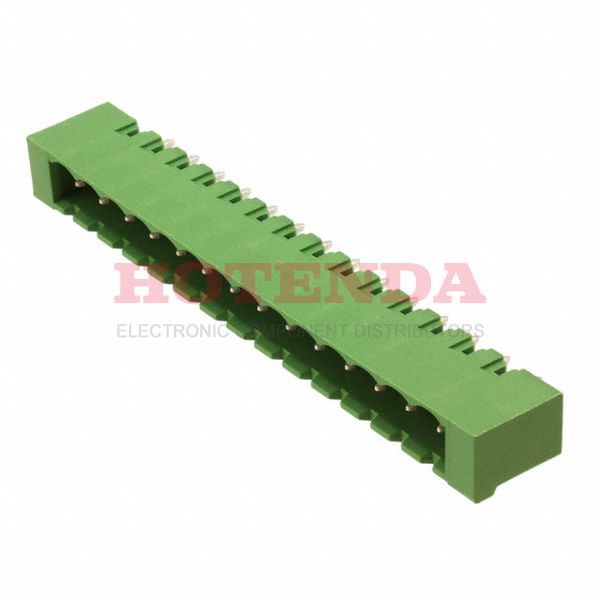

Name: 1809380
Brand: Phoenix Contact
SKU: 1809380
Price: 5.34000 USD
Availability: InStock

new-10%

1809380

Manufacturer part number:1809380

Manufacturer:Phoenix Contact

Description:1809380 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1809380 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Packaging	Bulk
Published	2012
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	14
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1809380 Product Details

1809380 Overview

Its mounting type is Through Hole.An Bulk case is utilized for packaging the product.Product number COMBICON MSTBVA belongs to the COMBICON MSTBVA Series.Through Hole is the mounting point for the part.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
