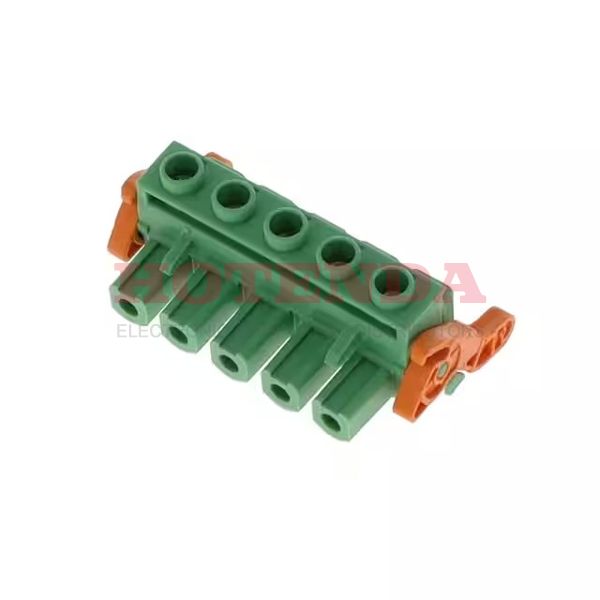

Name: 1812788
Brand: Phoenix Contact
SKU: 1812788
Price: 12.57000 USD
Availability: InStock

new

1812788

Manufacturer part number:1812788

Manufacturer:Phoenix Contact

Description:1812788 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1812788 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON GMSTB
Feature	Ejector Latches, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Pitch	0.300 7.62mm
Insulation Height	0.689 17.50mm
Reach Compliance Code	not_compliant
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	18.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	8mm
Current - IEC	16A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1812788 Product Details

1812788 Overview

This device is mounted in the Free Hanging (In-Line) position.The product is packaged in a Bulk case.It is part of the COMBICON GMSTB Series of products.A number of features make the Ejector Latches, Retention Latches (Non-Wire Side) feature more powerful.There is a Free Hanging mount on the part.There are many benefits that this part shares with other Plug, Female Sockets products as well.
