Name: 1822558
Brand: Phoenix Contact
SKU: 1822558
Price: 2.50000 USD
Availability: InStock

new-10%

1822558

Manufacturer part number:1822558

Manufacturer:Phoenix Contact

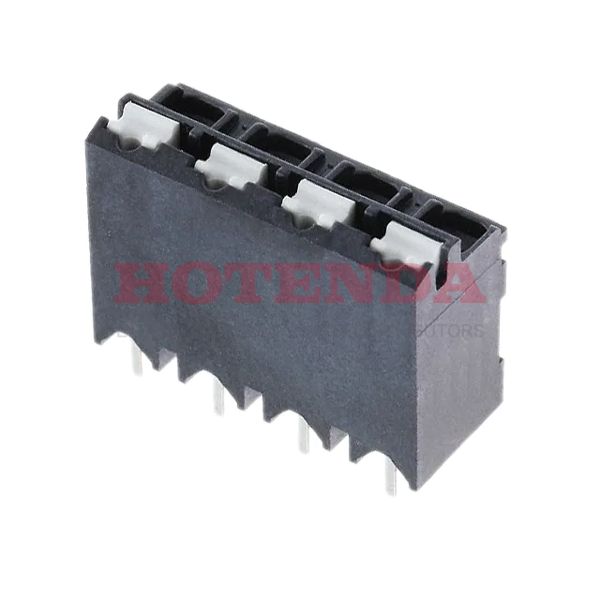

Description:0.197 5.00mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-THR

Case Package:SOT-23

Datasheet:1822558 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material - Plating	Tin Plated
Packaging	Tape & Reel (TR)
Series	COMBICON SPT-THR
Published	2015
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Color	Black
Pitch	0.197 5.00mm
Wire Gauge	16-24 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level	4
RoHS Status	RoHS Compliant

1822558 Product Details

1822558 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the COMBICON SPT-THR Series.Through Hole is used to mount the part.
