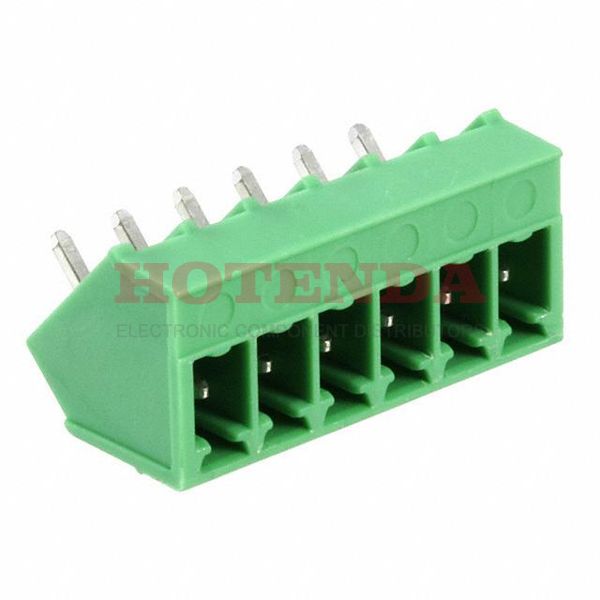

Name: 1827318
Brand: Phoenix Contact
SKU: 1827318
Price: 3.22000 USD
Availability: InStock

new-10%

1827318

Manufacturer part number:1827318

Manufacturer:Phoenix Contact

Description:1827318 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1827318 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SMC
Housing Material	Polyamide (PA), Nylon
Weight	114.00001g
Packaging	Bulk
Published	2011
Series	COMBICON SMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	45 deg
Depth	13.1mm
Insulation Height	0.433 11.00mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Voltage - IEC	320V
Number of Ways	6
Header Orientation	45°
Number of Positions Per Level	6
Height	14.4mm
Length	24.25mm
Width	24.25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1827318 Product Details

1827318 Overview

This product is packaged in a Plug carton.There is a mounting type of Through Hole for this device.A Bulk case is used to package the product.It's part of the COMBICON SMC Series.The packaging with the SMC contains a device.Through Hole is mounting the part.
