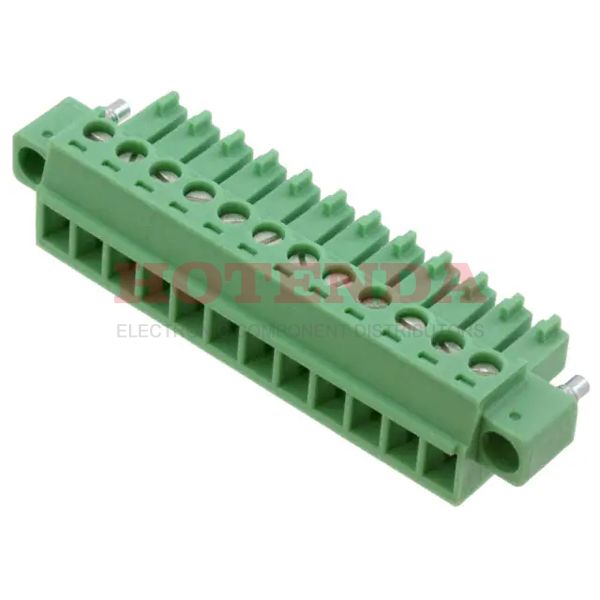

Name: 1827800
Brand: Phoenix Contact
SKU: 1827800
Price: 16.51000 USD
Availability: InStock

new

1827800

Manufacturer part number:1827800

Manufacturer:Phoenix Contact

Description:1827800 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1827800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	11.1mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	12
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	11.1mm
Length	56.11mm
Width	16.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1827800 Product Details

1827800 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) indicates that the device is mounted.Packaging is performed using a Bulk case.A member of the COMBICON MC Series.Besides that, there's also PA, 94V-0, to name a few.A number of features make it more powerful because of its Mating Flange feature.Cable, Free Hanging, Panel is used to mount the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
