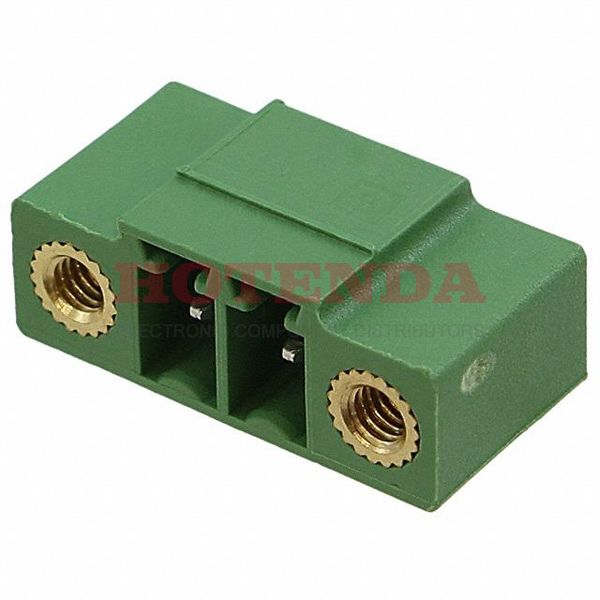

Name: 1827868
Brand: Phoenix Contact
SKU: 1827868
Price: 3.05000 USD
Availability: InStock

new-10%

1827868

Manufacturer part number:1827868

Manufacturer:Phoenix Contact

Description:1827868 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1827868 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2003
Series	COMBICON MC
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CB, CSA, VDE, cULus
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	2
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Fastening Method	CONNECTOR
Height	10.65mm
Length	18mm
Width	9.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1827868 Product Details

1827868 Overview

This product is packaged in a Plug box.The mounting type of the device is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MC Series of products.In many ways, its Mating and Mounting Flange feature makes it more powerful.There is a mounting hole at Through Hole.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
