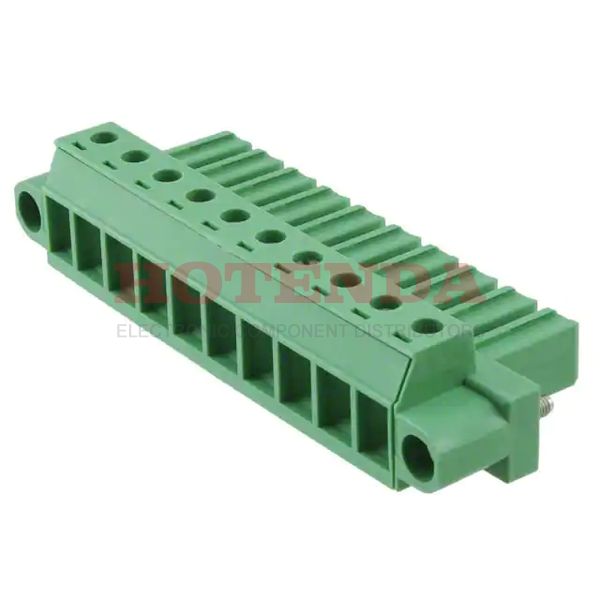

Name: 1828320
Brand: Phoenix Contact
SKU: 1828320
Price: 28.60000 USD
Availability: InStock

new

1828320

Manufacturer part number:1828320

Manufacturer:Phoenix Contact

Description:1828320 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828320 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	350.000009g
Packaging	Bulk
Published	2012
Series	COMBICON PC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	10 AWG
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Current - UL	5A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Number of Positions Per Level	10
Screw Size	M3
Wire Cross Section	4 mm2
Height	30.7mm
Length	91.42mm
Width	91.42mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1828320 Product Details

1828320 Overview

This product is packaged in a Screw, Socket box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.COMBICON PC Series product.Furthermore, there are other features such as PA, 94V-0, to name a few.As a result of its Mating Flange feature, it possesses a great deal of power.There is a Free Hanging, Plug-In mount on the part.This chip shouldn't have a voltage higher than 400V.Many Plug, Female Sockets products share the same benefits as this part.
