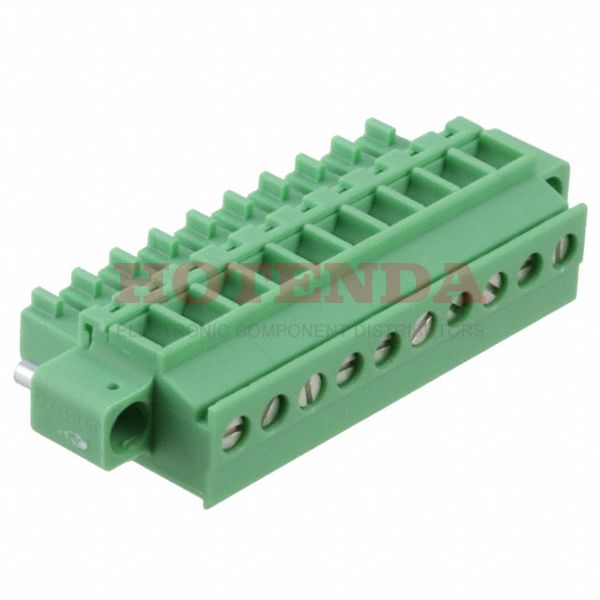

Name: 1828427
Brand: Phoenix Contact
SKU: 1828427
Price: 13.24000 USD
Availability: InStock

new

1828427

Manufacturer part number:1828427

Manufacturer:Phoenix Contact

Description:1828427 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828427 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	100.999996g
Packaging	Bulk
Published	2011
Series	COMBICON MCVR
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.752 19.10mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	10
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	12.5mm
Length	10.4mm
Width	48.49mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1828427 Product Details

1828427 Overview

The product is packaged in Screw, Socket.This device is mounted in the Free Hanging (In-Line) position.Bulk cases are used to package the product.A member of the COMBICON MCVR Series.In addition, there are other features such as PA, 94V-0, to mention only a few.There are a number of advantages to its Mating Flange feature.Free Hanging, Panel is the mounting point for the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
