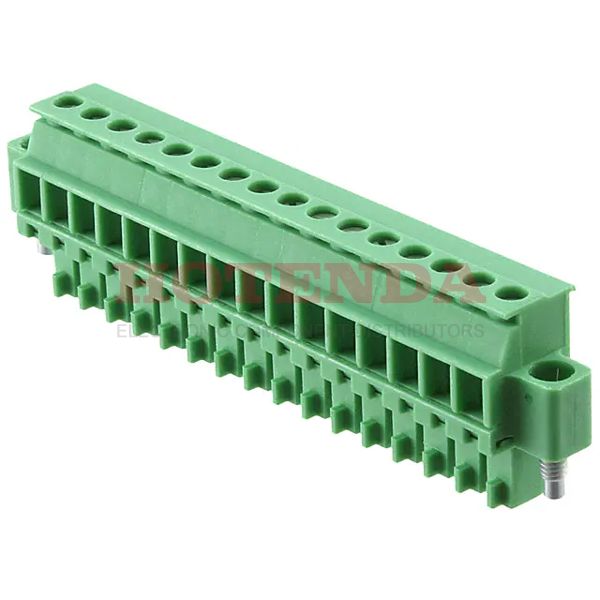

Name: 1828485
Brand: Phoenix Contact
SKU: 1828485
Price: 21.16000 USD
Availability: InStock

new

1828485

Manufacturer part number:1828485

Manufacturer:Phoenix Contact

Description:1828485 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828485 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	100.999996g
Packaging	Bulk
Published	2011
Series	COMBICON MCVR
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	10.4mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	16
Screw Size	M2
Height	12.5mm
Length	71.35mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1828485 Product Details

1828485 Overview

This product is packaged in a Screw, Socket box.There is a mounting type of Free Hanging (In-Line) for this device.It's packaged in a Bulk case.Among the products in the COMBICON MCVR Series, it is one of the most popular.As well as PA, 94V-0, to name a few.Several benefits come from the Mating Flange feature.The part is mounted by Cable, Free Hanging.This chip should not be operated above 160V volts.As with other Plug, Female Sockets products, this part has a lot of benefits.
